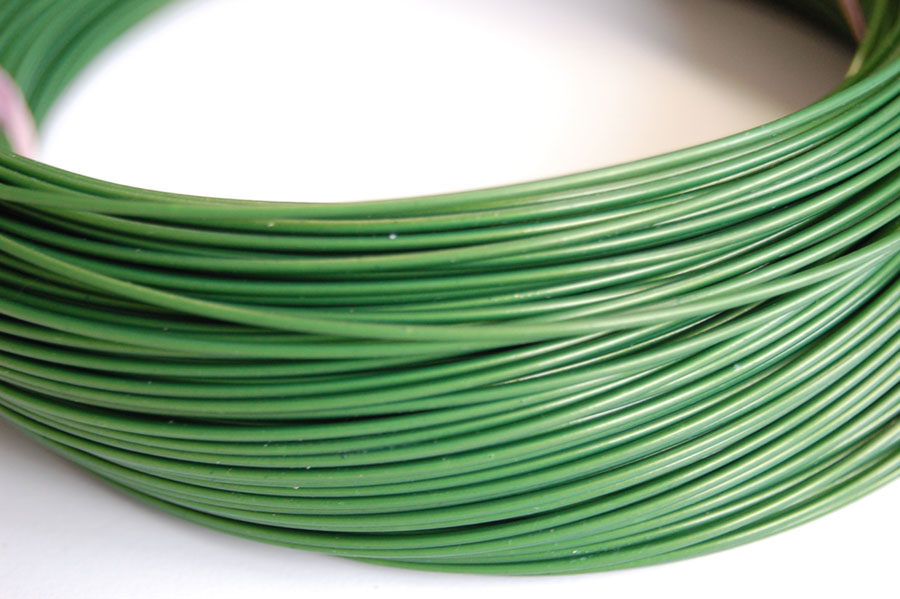

PTFE Wires, cables are tape wrapped wires having uniform insulation thickness around the central conductor compared to the wires insulated by extrusion process. PTFE is higher grade insulating polymer compared to other fluorocarbons that are used in extrusion process. PTFE Wires, cables have much greater perfection.
Product Range:
- Hook-up Wires
- RR Co-Axial Cables
- Tri-Axial Cables
- Multi Core Twisted Cables
- Twisted & Shielded Cables
- Twisted Shielded & PTFE /PVC Jacketed Cables
- Double Shielded Cables
- Multi Pair Cables
- Twin Parallel Balloon Wire
- Sleeves
- PTFE Tape
- PTFE Hoses
Operating Temperatures:
- PTFE Insulated Silver Plated Copper Wires - 650 to 2650
- PTFE Insulated Nickel Plated Copper Wires - 650C to 2000C
Running Voltage:
- TYPE ET: 250 VOLTS AC RMS
- TYPE E: 600 VOLTS AC RMS
- TYPE EE: 1000 VOLTS AC RMS
General Charactersitics:
- Low Dielectric Constant
- Low Dissipation Factor (<. 0003)
- High Operating Temperatures
- Excellent Thermal Stability
- Suitable For Wide Frequency Range: DC to Above 10000 MHZ
- High Surface Resistance
- Inert to Chemical Attack
- High Volume Resistance
- Flame Proof
- High Mechanical Strength
- Fair Corona Resistance
- Suitable to High Density Wiring
- Inert to Fungus and Mould Growth
Applications:
- Electronic test equipments
- Computers
- Electronic Equipments For Aircraft, Marine, Radar, Satellites
- Aerospace Research
- Power Control Equipment
- Lead Cells & Pressure Transducers
- Heat Sensing Leads
- Atomic Power Stations
- High Performance Electrical Machines
- Furnace & Oven Wiring
- High Temperature Exchanges
- Refrigeration Equipments
- Lifts
- Infra red sensing equipments
